NZPM - Palmerston North

Position	Callsign	Frequency	Login	Type
Palmerston ADC	Palmerston Tower	120.6	NZPM_TWR	Primary
Palmerston SMC	Palmerston Ground	121.7	NZPM_GND	Secondary

Areas of Responsibility

The areas of responsibility are as depicted below. The areas of Taxiways B, C and D that fall under Tower's responsibility only apply if Grass 07/25 is in use. If not in use, this area shall be delegated to Ground.

If Grass 07/25 is in use, aircraft taxiing for the sealed must be handed off at the B3, C3 or D3 holds.

Tower shall hand off all aircraft once clear of the sealed runway. If the grass runway is in use, they shall be handed to Ground when passing B3, C3 or D3.

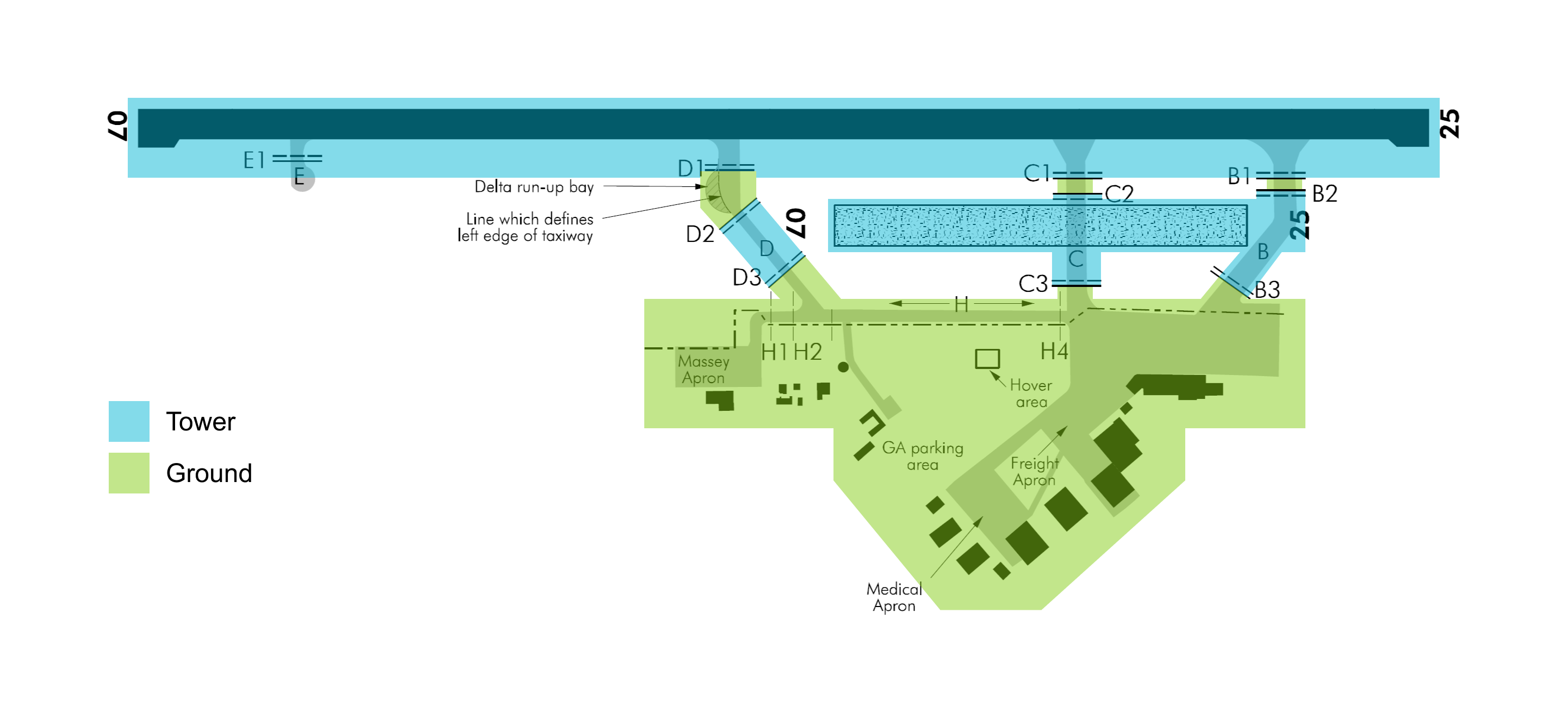

Palmerston North Areas of Responsibility

Taxiways

Taxiways D and H are only suitable for light GA aircraft. B733 and B734 to use Taxiway C to transit between RWY 07/25 and stand 7. A320 and B738 aircraft restricted to Taxiway B when transiting between RWY 07/25 and main apron.

All other traffic shall enter the runway closest to the take-off roll position. For example, if Runway 25 is active, aircraft should be instructed to enter the runway via Taxiway B.

Airspace

The Palmerston North CTR follows the lateral boundaries as shown below from SFC to A015, and is designated as Class D airspace.

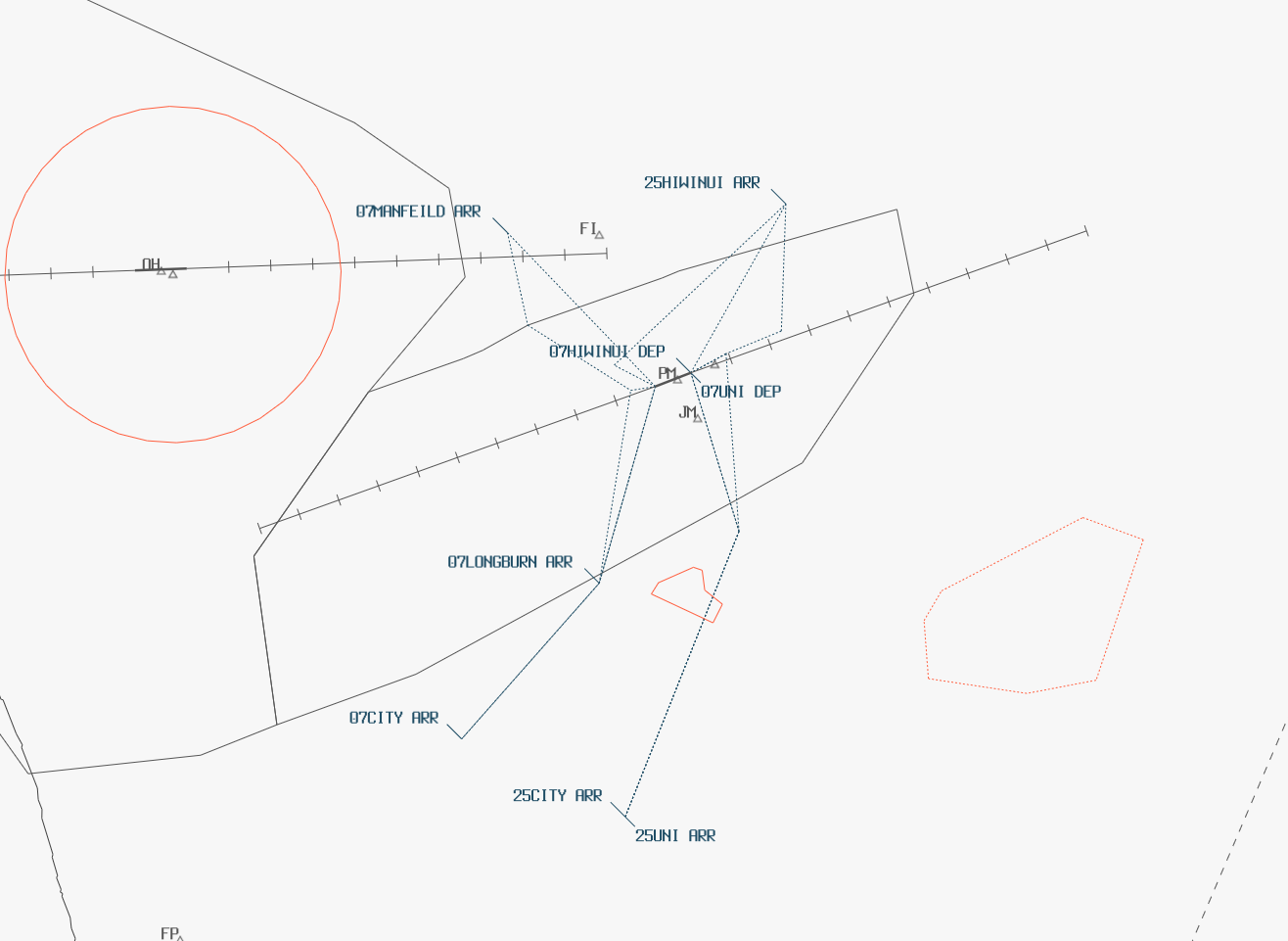

Palmerston North Control Zone (CTR)

SIDs and STARs

Due to the surrounding MOAs, NZPM has numerous SIDs and STARs to either reroute traffic around, or climb aircraft above, the active MOAs. These limitations only apply to aircraft arriving from and departing to the North.

Runway 07

The preferred departure for IFR aircraft tracking via OMBUB is the TEROT #Q, due to the relatively direct nature. For other departure directions, issue the suggested SID.

The below table outlines the prohibited procedures when the respective MOA is active.

Active MOA(s)	MOA Vertical Limits	Prohibited SIDs	Prohibited STARs	Reasoning
M311 - Bulls	A015 - A025	None	BUVLI #B	STAR descends through active MOA
M307 - Marton	A080 - FL200	RUXOS #S DADLI #S TEROT #Q	None	SIDs climbs through active MOA

Runway 25

The preferred departure for IFR aircraft tracking via OMBUB is the GUTNI #R, due to the relatively direct nature. For other departure directions, issue the suggested SID.

The below table outlines the prohibited procedures when the respective MOA is active.

Active MOA(s)	MOA Vertical Limits	Prohibited SIDs	Prohibited STARs	Reasoning
M311 - Bulls	A015 - A025	GUTNI #R	None	SID climbs through active MOA
M307 - Marton	A080 - FL200	GUTNI #R	None	SID climbs through active MOA
